- Place of Origin: Shandong, China (Mainland)
- Brand Name: Henglin
- Model Number: z146

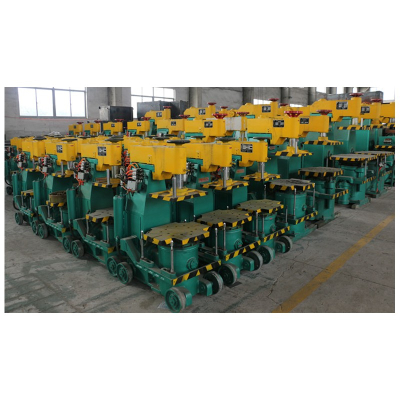

Jolt Sequeeze Molding Machine
Including various types of pneumatic micro Jolt Molding Machine,contact molding machine horizontal(vertical) type cold(hot) core box shoot core machine,shell core machine, aluminum alloy automatic pouring machine.According to the different casting,making shell.Shell will be buried in the quartz sand or (grit), or direct molding;produce high quality castings;equipment covers small area,saving cost,will get much more pfofit.
Item | Foundry Flask Maximum Dimension(mm) | Worktable Dimension(mm) | Jolting Load(Kgf) | Compressive Stress(Kgf) | Compress Process(mm) | Moulding Process(mm) | Productivity(carton/hour) | Jolting Cylinder Diameter ( ∅ mm) | Consumption of Free Air (m³/carton) | Outline Dimension L*W*H(mm) |
Z145WA | 500x450x200 | 600x550 | 300 | 5500 | 200 | 180 | 40-60 | ∅150 | 0.4m³/carton | 1300x800x1700 |
Z145WB | 500x450x200 | 600x550 | 300 | 6300 | 200 | 2000 | 40-60 | ∅150 | 0.4m³/carton | 1200x800x1680 |
Z146W | 600x500x250 | 700x550 | 400 | 7500 | 200 | 220 | 40-60 | ∅150 |
| 1200x800x1680 |
Z148W | 800x600 | 900x730 | 600 | 10000 | 200 | 250 | 40-60 |
|
| 1760x1180x2280 |
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: HENGLIN
Model Number: Customized
Voltage: customized
Power(W): customized
Dimension(L*W*H): customized
Weight: customized
Certification: ISO9001:2008
Warranty: 3 years
After-sales Service Provided: Engineers available to service machinery overseas
Type: High Efficiency
Packaging & Delivery
Packaging Details: | free packaging |
---|
Delivery Detail: | Shipped in 7 days after payment |
---|
