2016 heng lin resin sand casting production line
specification
l Foundry machinery,
l Shot blasting machine,
l Shot blast machine parts,
l Sand mixer,
l Clay sand molding line,
l Resin sand molding line,
l Core shooting machine
l Molding machine,
l Environmental dust removal equipment,
l Vacuum molding line
l Lost Foam molding line
l Vertical / Horizontal automatic molding line,
l Mold design and make,
l Foundry Plant design and building
Desprition

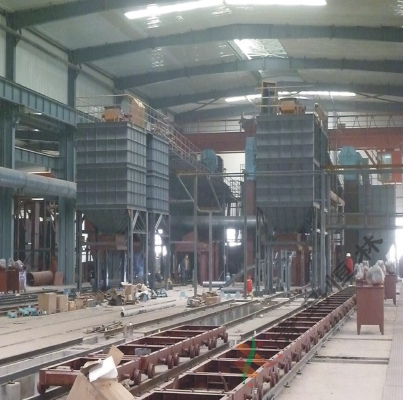

It include the production line of (phenol aldehyde) Resin sand regeneration line,Water glass sand recycling line and Flip up machine.Sand regeneration line mainly composed by the shakeout machine, vibration conveyor, magnetic separator, plate chain hoist, vibration crushing recycling machine, centrifugal rotor regenerating machine, rub the recycling machine,sand temperature regulator, continuous resin sand mixer sand machine, bucket elevator, sand storehouse, pulse back blowing bag type dust collector. It is equipped with PLC control system , material position detection system and gas control system to realize the automatic operation. With the reasonable board layout, compact structure and high productivity, we can meet different customer requirements.
product information
| Type | Productive(t/h) | Large arm radius(mm) | small arm radius(mm) | Sand outlet height(mm) | total power(kw) |
| SZ255/SZ256 | 5 | 2000/2200 | 1500 | 1250/1200 | 8.3/6 |
| SZ2512/SZ2612 | 10 | 3000/4000 | 1800 | 1800/1600 | 16/17.1 |
| SZ2515/SZ2615 | 15 | 3000/4000 | 1800 | 1600-3100 | 20/23.5 |
| SZ2520/SZ2620 | 20 | 3000/4000 | 2200 | 2500/1600 | 22/23.8 |
| SZ2525/SZ2625 | 25 | 3000/4500 | 2200 | 1700-3000 | 29.4/33.5 |
| SZ2530/SZ2630 | 30 | 4000/6000 | 2200 | 1600/1500 | 26.1/27.5 |
| SZ2540/SZ2640 | 40 | 4000/6000 | 2200/2400 | 1800-4800 | 32.5/40.5 |
| SZ2560/SZ2660 | 50-60 | 5000/7000 | 2200/2500 | 1400-4800 | 41.5/43 |
| SZ2580/SZ2680 | 70-80 | 5000/9000 | 2500/2600 | 1600-5600 | 69/72 |
| SZ25100/SZ26100 | 90-100 | 6000/11000 | 2500/2800 | 1600-5600 | 72.5 |
